HR-DP13HR-DP13HR-DP13

HR-DP13

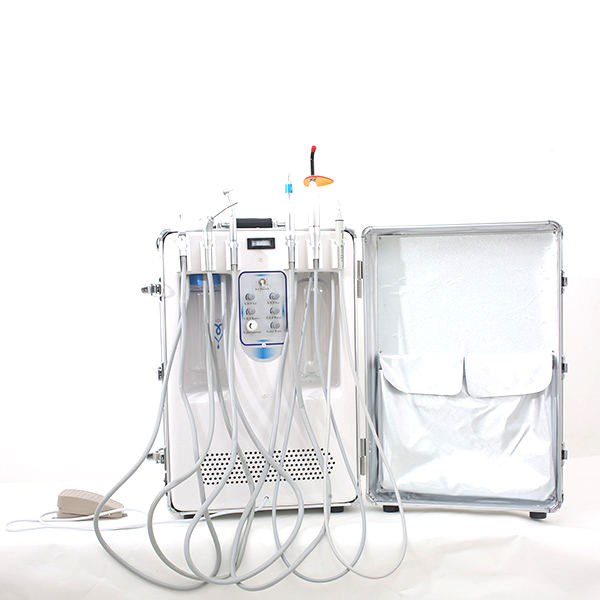

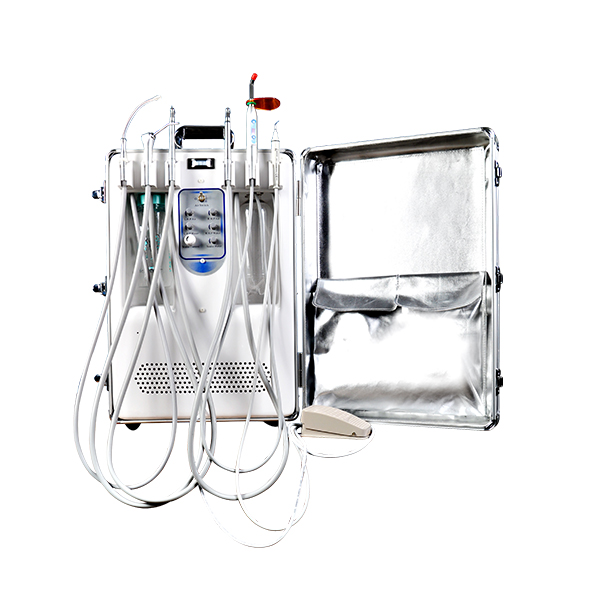

    Product Name: Portable Dental unit

    Model: HR-DP13


Application:

Portable Dental Unit, is a portable/mobile dental equipment newly developed by our company. Its main applications are for oral health and treatment in community clinics and hospitals. Equipped with its own compressor, gas tank, pressure release filter valve, clean water bottle,saliva gathering bottle, it provides a high level of steady, dry and clean air power for high-speed turbine handpiece. The unit is portable, simply operated, easy to maintain and welcomed by the dentists and doctors.


Packing:

Carton size: 55*42*76cm

Net weight: 28kg

Gross Weight: 35kg

8 sets per pallets



Technical Data
Power supply:220V /50Hz ;110V /60Hz ,550W
Air flow60L/min
Max pressure0.8Mpa
Noise40dB
Standard Features:

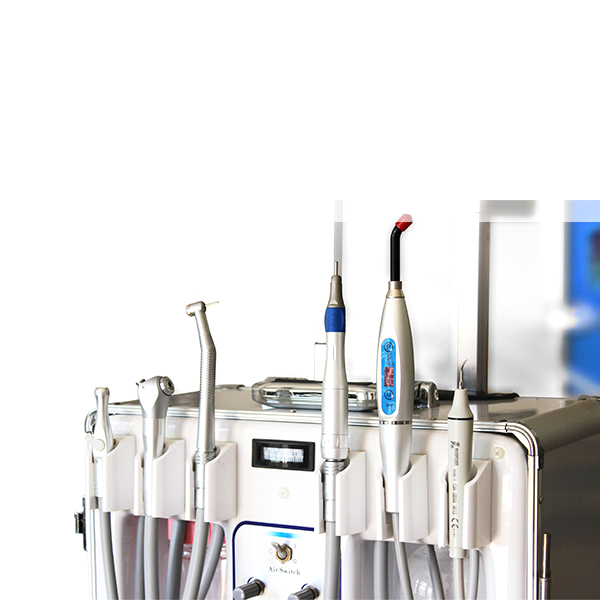

4 hole high quality instrument hose  2pcs  ( 2 hole is also available )
3-way syringe with autoclavable Tip1pc
High volume suction1pc
LED curing light with timer1pc
Woodpecker Piezo ultrasonic scaler1pc
Oil-free silent compressor  1set
S/S 6 liters air tank1pc
Water container1 liter
Waste container1 liter
Multi-functional foot pedal            1pc
High-quality aluminum alloy casing


Options

High speed handpiece

Low speed handpiece

fiber optic handpiece



Advantages:
Air tankStainless steel air tank made by mould, without welding , protecting against air leaking . Other air tanks which are made of plastic or aluminum.
Foot pedalMulti functional foot pedal:2 in one foot pedal which control both of the handpiece and scaler , more convenient.
Suction:Internal cycle suction working process, keep suction very strong when the doctor operate the suction with the handpiece. For one cup of water, it just takes 5 seconds to suck
Controlling9 Electrical valve control the unit ,  more convenient and safe than other units of machinery controlling
Air compressorHigh quality Silent oiless built in compressor, with 4 set mold made shock absorber at the bottom.  More quiet.
